Kustomer Chat SDKs

The Kustomer Chat SDK is available for Android, iOS, and web

Template types

Kustomer Chat message template types with sample JSON object templates and UI examples.

All messages in the Kustomer Chat SDKs are defined by the following JSON message template types:

  • Texts: Messages in plain text.

    • "templateType": "text"
  • Quick replies: Messages customers can select from available response buttons.

    • "templateType": "quick_replies"
  • Multi-level Lists (MLL): Messages customers can select from a multi-level list with parent list items and children list items.

    • "templateType": "mll"
  • KObject Lists: KObjects (custom Objects) that customers can select from a list during a conversation with a conversational assistant.

    • "templateType": "list"

We've provided below sample JSON objects and chat UI images for message template types.

Texts

Messages in plain text.

JSON object template

{
    "channel": "chat",
    "messageTemplate": {
        "templateType": "quick_replies",
        "body": "Hello world"
    },
    "conversation": "5f97083cfc8ccb008eb599c0",
    "sendAt": "2020-10-26T17:20:12.926Z"
}

Quick Replies

Messages customers can select from available response buttons.

JSON object template

{
    "channel": "chat",
    "messageTemplate": {
        "templateType": "quick_replies",
        "body": "Hello! What type of issue are you talking about?",
        "actions": [{
            "displayText": "marketing",
            "value": "marketing",
            "valueType": "text"
        }]
    },
    "conversation": ":id",
    "sendAt": "2020-10-26T17:20:12.926Z"
}

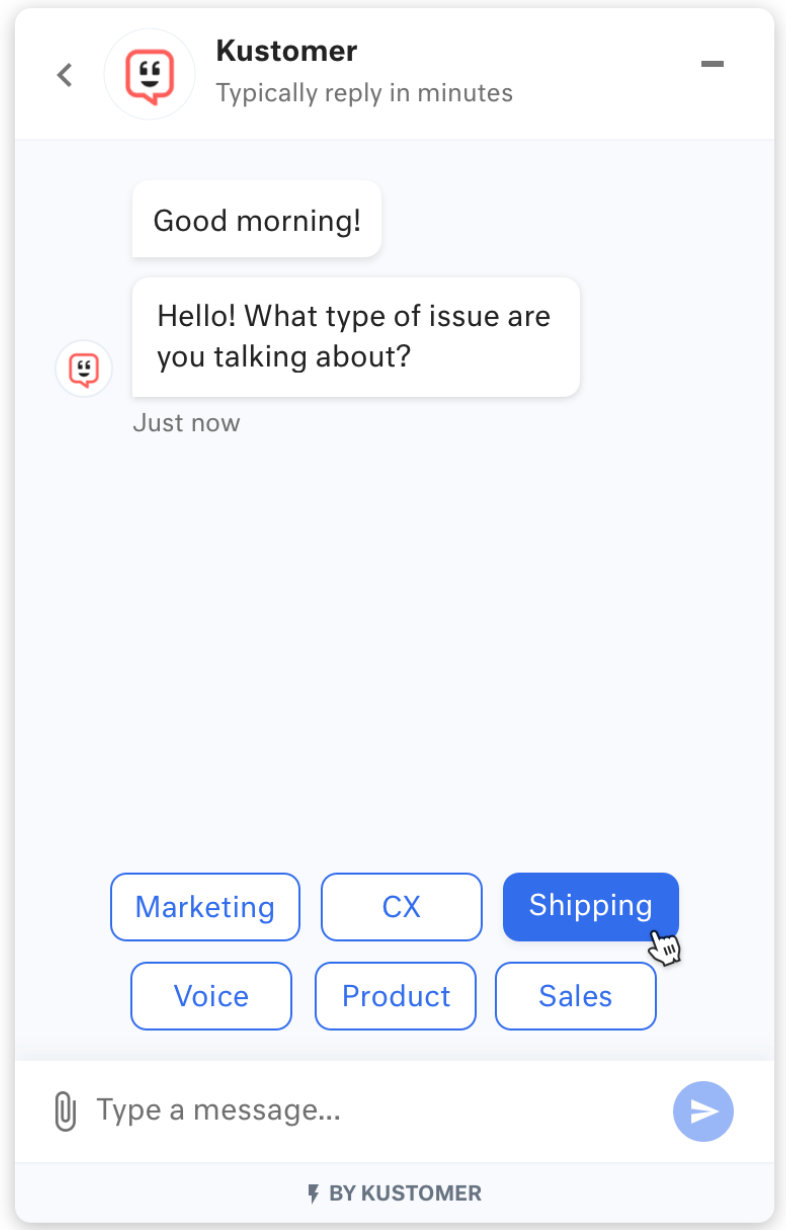

Message template type `quick_replies` (Quick replies) in the chat UI.Message template type `quick_replies` (Quick replies) in the chat UI.

Message template type quick_replies (Quick replies) in the chat UI.

Multi-level Lists (MLL)

Messages customers can select from a multi-level list with parent list items and children list items.

JSON object template

{
    "channel": "chat",
    "messageTemplate": {
        "templateType": "mll",
        "body": "Here is an multi-level list, or MLL",
        "actions": {
            "tree": {
                "children": [
                  {
                    "id": "tvs",
                    "displayName": "TVs",
                    "children": [
                      {
                        "id": "size",
                        "displayName": "size"
                      }
                    ]
                  }
                ]
              }
        }
    },
    "conversation": "5f97185c956548008e5fcc40",
    "sendAt": "2020-10-26T17:20:12.926Z"
}
Message template type `mll` (Multi-level Lists) in the chat UI.Message template type `mll` (Multi-level Lists) in the chat UI.

Message template type mll (Multi-level Lists) in the chat UI.

KObject Lists

KObjects (custom Objects) that customers can select from a list during a conversation with a conversational assistant.

JSON object template

{
    "channel": "chat",
    "messageTemplate": {
        "templateType": "list",
        "body": "Which team can we connect you with?",
        "actions": [
          {
            "imageUrl": "someUrl",
            "titleText": "someTitle",
            "detailsText": "someDetails",
            "value": "someId",
            "valueType": "kobject"
          }
        ]
    },
    "conversation": "5f97185c956548008e5fcc40",
    "sendAt": "2020-10-26T17:20:12.926Z"
}
Message template type `list` (KObject Lists) in the chat UI.Message template type `list` (KObject Lists) in the chat UI.

Message template type list (KObject Lists) in the chat UI.

Updated 4 months ago


Template types


Kustomer Chat message template types with sample JSON object templates and UI examples.
